Our Product Line

Solving Fuel & Oil Contamination Challenges

Smart Manifolds

Our innovative Smart Manifolds are designed for industry leading high flow & dirt holding capacity configurations. Lower internal flow resistance for minimal pressure drop and compact size with 4” flanges on both ends for uncomplicated installation in existing pipe infrastructure.

Donaldson’s proven spin-on technology also makes our manifolds extremely easy to service without the need of specialized tools and personnel.​

Smart Filtration Donaldson Bulk Fuel Filtration Solutions

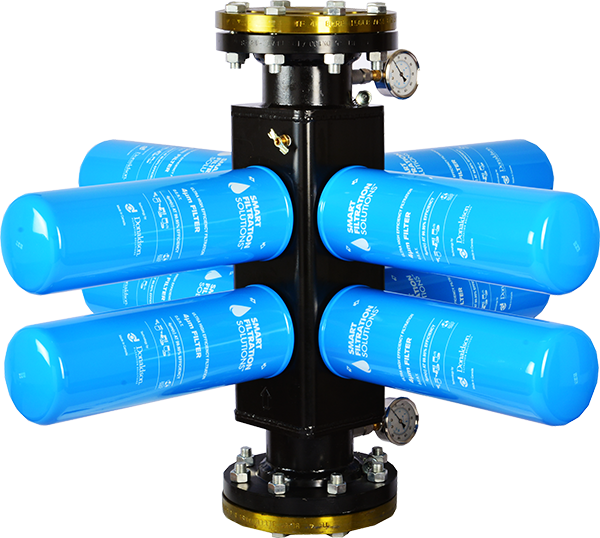

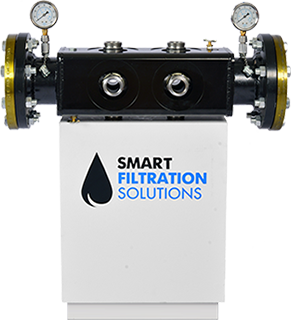

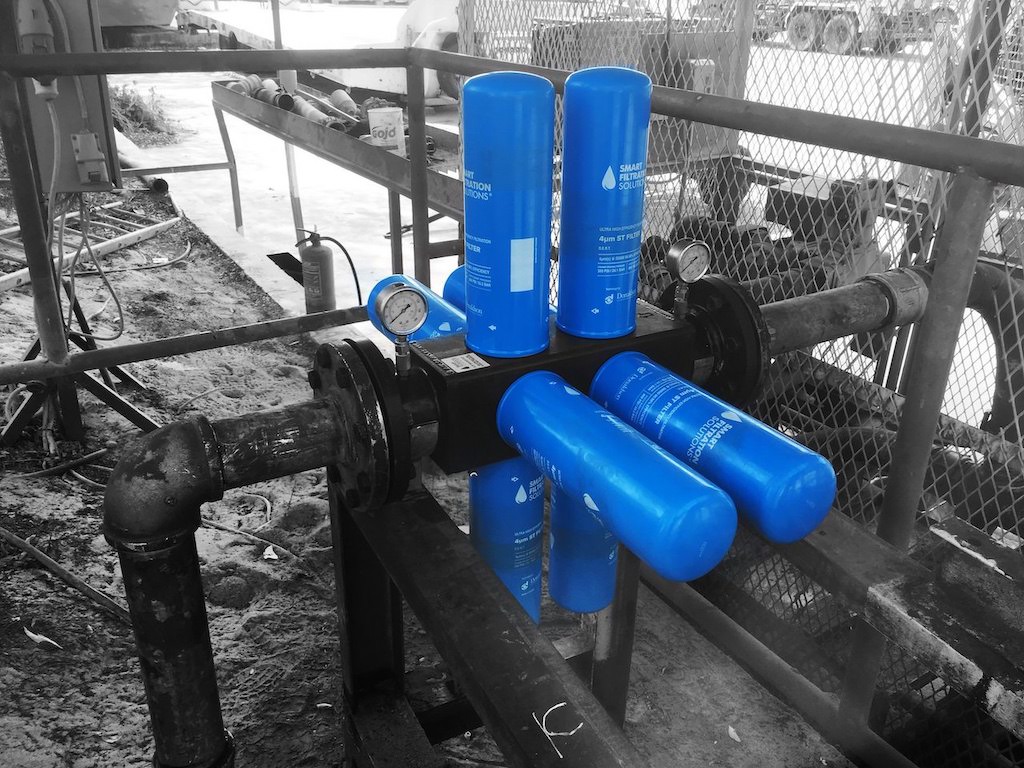

8 Filter Smart ST Manifold

Specifications:

  • Max Flow Rate: 450 gpm / 1700 lpm (Diesel Fuel)
  • Working Pressure: 150 psi / 10 bar
  • Mounting: ASA 150 4” Flanges
  • Configuration: Mounts in any direction
  • Filter Quantity: Up to 8
  • Accessories: Mechanical Pressure Gauges, Blanking Caps
  • Service Element:
    4μm ß5000 ST Filter with D.E.R.T
    7μm ß2000 ST Filter with D.E.R.T
    25μm ß5000 ST Filter
    Water Absorbing ST Filter
Smart Filtration Donaldson Bulk Fuel Filtration Solutions
Smart Filtration Donaldson Bulk Fuel Filtration Solutions
Smart Filtration Donaldson Bulk Fuel Filtration Solutions

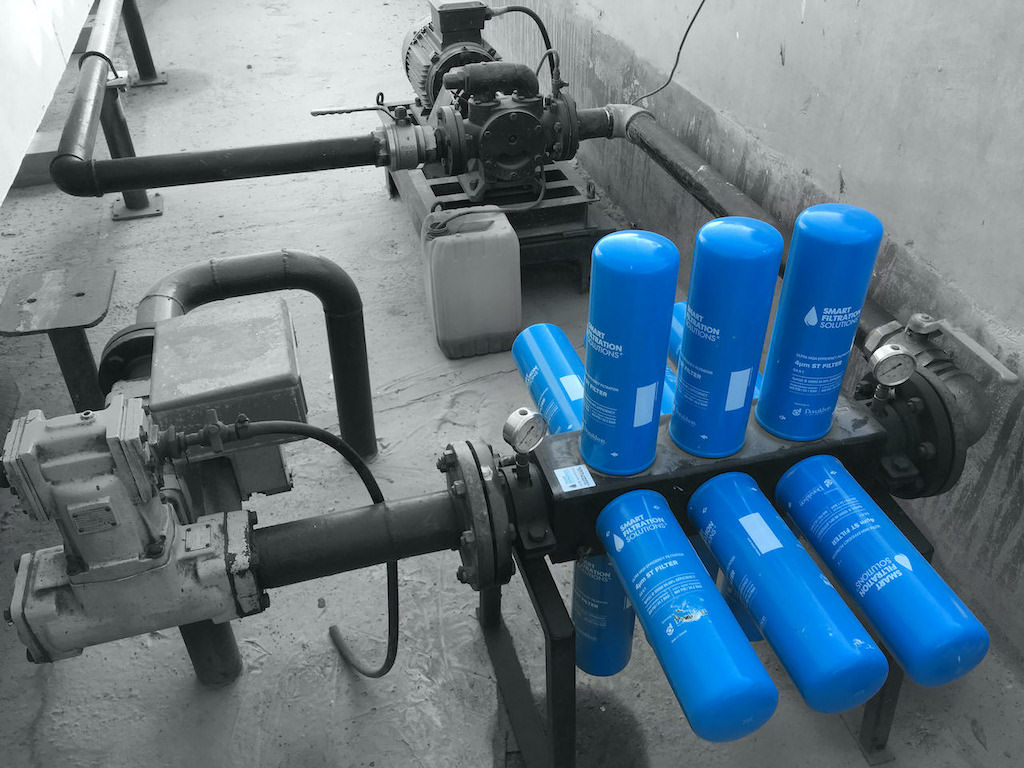

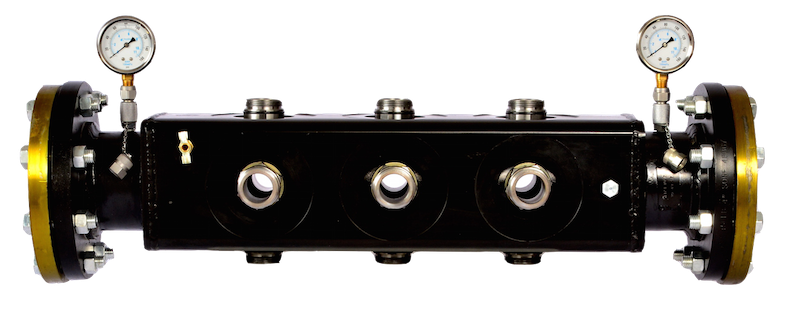

12 Filter Smart ST Manifold

Specifications:

  • Max Flow Rate: 700 gpm / 2650 lpm (Diesel Fuel)
  • Working Pressure: 150 psi / 10 bar
  • Mounting: ASA 150 4” Flanges
  • Configuration: Mounts in any direction
  • Filter Quantity: Up to 12
  • Accessories: Mechanical Pressure Gauges, Blanking Caps
  • Service Element:
    4μm ß5000 ST Filter with D.E.R.T
    7μm ß2000 ST Filter with D.E.R.T
    25μm ß5000 ST Filter
    Water Absorbing ST Filter
Smart Filtration Donaldson Bulk Fuel Filtration Solutions
Smart Filtration Donaldson Bulk Fuel Filtration Solutions
Smart Filtration Donaldson Bulk Fuel Filtration Solutions

Modern Engines Demand Clean Fuel

Progressive introduction of increasingly stringent emission standards have resulted in sophisticated diesel engines that require cleaner fuel than ever before to operate efficiently, due to injection pressures of more than 30,000 PSI and extremely tight tolerances. In engines where precision is everything, you can’t risk the damage done by high-velocity microscopic contaminants. At 30,000 PSI (2000 BAR), every unfiltered particle acts almost like a tiny sandblaster, eroding the injector, creating inefficient spray- patterns and potentially over-fueling the engine. A fouled injector doesn’t spray fuel efficiently and may lead to improper idle, irregular fuel distribution, unsuitable exhaust emissions and poor fuel economy.

We Have Great Answers

Frequently Asked Questions

Common rail injector’s pressure can go up to 2700 BAR. This increase in pressure has a major impact on the cleanliness level of the fuel that is allowed to flow through the injector.

We always stress the fact that the main aspect to consider in choosing a filtration unit is the balance of efficiency, capacity and pressure drop. There are many factors to consider when it comes to dirt holding capacity: flow, viscosity, system pressure drop, contaminant properties, etc. All these factors have an impact on the dirt-holding capacity of a filter.

If you get a bad batch of fuel, a kidney loop system will then have to recirculate the entire volume of what was in your tank + the new delivery. A kidney loop system cannot physically clean all fluid in the tank; there is always a point of zero gravity that a kidney loop system will not filter. Start – Stop principle that is frequent at a kidney loop releases small particles.

As long as tanks are interconnected and have one main inlet, it doesn’t matter how many tanks you have on site. We carefully design and size up the installation to coup with service intervals. Some of our end users have up to 8 fuel tanks connected to a single manifold on the inlet side.

Smart Filtration Solutions gives you 100% control over the cleanliness of fuel you receive. Many people assume they are buying quality fuel that meets the required specifications; diesel fuel cleanliness is rarely questioned. But higher fuel systems operating pressures, lower system tolerances and tighter filtration have pushed fuel cleanliness into the maintenance spotlight.

Normally, laser and automated white light particle counters are used to detect the contamination that is present in fluids. It may happen that these particle counters are not accurate and count phantom particles because of the difficulty in differentiating dirt, water or additives. Phantom particles count is more present in fluids blended with additives than in base fluids.
